Innovative filter system with extremely effective filter capacity
Intelligent controller system with easy operation monitors and displays the core functions.
Professional drum filter technology for long service intervals ensures efficient utilisation of the filter biology
The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology
Conveniently control all settings via an app with the Easy Garden Control System (EGC); existing systems can be upgraded using the separately available upgrade kit
Long service life and high quality filter sponges offer the best conditions for the filter biology
The filter is flushed only by cleaned pond water. Therefore a fresh water connection is not required.
Powerful, high-quality pressure pump is integrated for flushing the drum
Particularly quiet in operation thanks to extensive noise insulation
Individually removable sieve elements (no tools required) and free-wheeling functions for easy access to the drum interior
Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum
Less string algae through continuous removal of phosphates and nutrients
Pollutant discharge incl. slide valve
Innovative and reliable product “Made in Germany” (except pressure pump)
Incl. OASE Clear Water Guarantee

TECHNICAL DATA

Dimensions (L x W x H)	mm	830 x 600 x 820
Rated voltage		230 V / 50 Hz
Power consumption	W	5
Power consumption, cleaning	W	670
Cable length	m	5.00 + 1.00
Net weight	kg	56.00
Guarantee (+ request guarantee) *	Years	2 + 1
Control unit		Microcontroller
Temperature display		Digital
Coarse debris extraction	µm	125
Number of nozzles/rinse quantity		1 x 4.0 l/min
Scavenging pump		4 bar
Automatic rinsing system		manually, Sensor, Time interval
Material		GRP Duroplast/stainless steel
Number of blue filter foams	Units	2
Number of red filter foams	Units	2
Number of purple filter foams	Units	2
Number of inlets	Units	1
Inlet connections		1 x 2″ + Bitron
Connection EGC		Yes
Connection to		Bitron C 36 – 110 W, Bitron Eco 120 – 240 W, ProfiClear Classic
Number of outlets	Units	1
Outlet connections		DN 110
Sludge discharge connections		DN 75
Flush trough connection		DN 110
Min. flow rate	l/h	7500
Max. flow rate	l/h	12500
Suitable for ponds up to max.	m³	80.0
Suitable for ponds with fish stock	m³	40.0
Suitable for ponds with koi *1	m³	20.0
Installation height above water level	cm	51.0

SPARE PARTS

POS.	PRODUCT	SKU	QUANTITY
1	Spare part lid cpl. drum filter	18795	1
2	Spare cover gasket seal drum filter	21981	1
3	Fuse T8A 250 V	18692	1
4	Upgrade-Controller ProfiClear Prem. EGC	47012	1
5	Container BioTec Premium 80000 EGC	54855	1
6	Clip drum filter	18842	2
7	Cable protection Quintet / drum filter	11979	1
8	ASM waste channel BioTec Premium 80000	40022	1
9	Lock nut V2A DIN 985 M6	6128	1
10	Spare ASM drum motor pump-fed	72198	1
11	Screw V4A DIN 912 M6 x 10	15596	1
12	Spare nozzle BioTec Premium 80000	41471	1
13	ASM cleaning tube BioTec 80000 inject	49842	1
14	Spare hose bracket BioTec / Compact	41472	1
15	Spare drum BioTec / Compact	41476	1
16	Spare drum bearing truss	41887	1
17	Spare drum bearing drum filter	18791	1
18	Drum shaft	16288	1
19	Locking pin V2A DIN 11023 – 6 mm	19515	1
20	Spare clip drum filter	41889	1
21	Spare sieve BioTec Premium 80000 125µ	41473	1
22	Bayonet ring inner cover BioTec 80000	22629	1
23	Inner cover BioTec Premium 80000	22422	1
24	Cap nut V2A DIN 1587 M6	6117	1
25	Hexagon nut V2A DIN 934 M6	6105	1
26	Fiberplate DIN 7603 6 x 12 x 1 mm	20609	1
27	Oval head screw V2A DIN 7985 M6 x 25	17918	1
28	Oval head screw V2A DIN 7985 M6 x 16	14596	1
29	Retainer inner lid BioTec Premium 80000	40071	1
30	Foam holder long BioTec Premium 80000	41253	1
31	Foam holder short BioTec Premium 80000	40121	1
32	Foam plate base part FiltoMatic	13629	1
33	Filtercartridge set BioTec Premium 80000	40456	1
34	Oval head screw CZ-V2A DIN 7981 6.3 x 32	27572	1
35	Gasket inner cover BioTec Premium 80000	22676	1
36	Intake 100	26963	1
37	Spare drain DN75 Premium	18446	1
38	Spare srews set drain DN75 Premium	18448	1
39	Replacement Plug	35570	1
40	Add. pack drum filter pump-fed II	22746	1
41	Spare grommet drum filter pump-fed	18798	1
42	Connection elbow 2″/90° Bitron	50540	1
43	ASM connection set DN 110	19005	1
44	Fastening kit rinse pump rear	40114	1
45	Washer VA DIN 9021 6.4	6143	1
46	Fastening kit rinse pump front	40074	1
47	Spare connector waste pump BioTec/Comp.	41479	1
48	Rinse pump 4 bar – 2 m cable	40075	1
49	Pre-filter rinse pump	18943	1
50	Spare drum gasket	23192	1
51	Cylinder screw V2A DIN 912 M4 x 20	20320	1
52	ASM signal box BioTec EGC	48376	1
53	Mounting pl.float switch BioT./Comp.pump	40099	1
54	Safety nut V2A DIN 985 M4	11113	1
55	Spare seperating wall BioTec/Comp. pump	41481	1
56	O-Ring EPDM 6 x 1.5 SH70 A	19023	1
57	Cable holder drum filter	19402	1
58	Spare plain roller drum filter	18794	1
59	Spare set ASM gland seal	43867	1
60	Mount. plate float sw. BT 80000 cleaning	49714	1
61	Cover cap nut M6	49847	1
62	Oval head screw V2A DIN 7985 M6 x 12	20292	4
63	Check valve 2″	48183	1

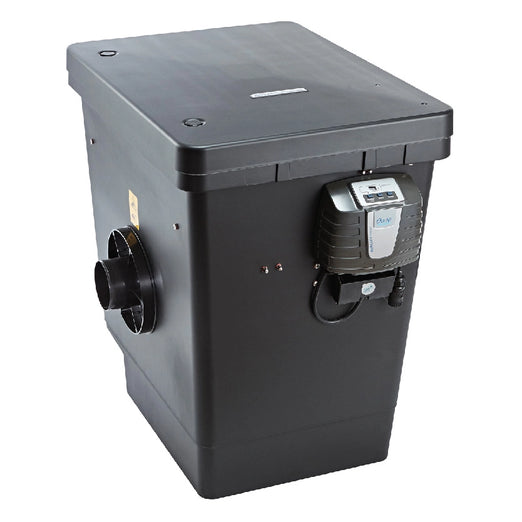

BioTec Premium 80000 EGC pump-fed
