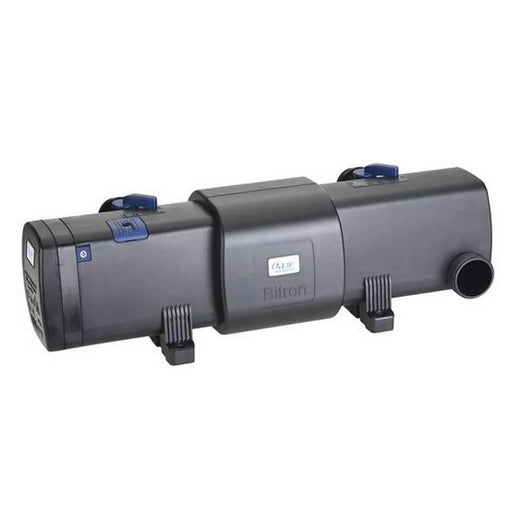

The OASE Bitron C 110 W UVC clarifier removes floating algae and reduces harmful bacteria for healthy and clear water. An automatic cleaning system ensures fully effective UVC radiation at all times. A control window provides additional functional reliability. With a power consumption of 110 watts, 12,000 l / h can flow past the UVC tube without a bypass. The flow can be individually adjusted and regulated. The OASE Bitron C 110 W UVC clarifier is available complete with a universal stepped hose nozzle from ¾ "to 2". The cable is 5 m long. A flow nozzle optimizes the flow to the cleaning rotor. The nominal voltage is 230 V / 50 Hz. Ideal for connection to ProfiClear, BioTec 30 and BioTec ScreenMatic 36. You receive a 2-year guarantee.

Elimination of suspended algae (green water)
Reduction of harmful bacteria and pathogen levels
Clever UVC function monitor, display for bulb change and water temperature
Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
Individual water flow adjustment for optimal adaptation to the connected filter pump
Integrated magnets protect the UVC technology against limescale deposits
Visual function check of the UVC bulb
100% protection against eye damage
Quick release technology for easy bulb replacement
High-quality workmanship with impact resistant plastic housing
Incl. high quality UVC bulb
Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
Suitable for ponds up to 110.0 m3
SELF-CLEANING: Highly effective UV radiation at all times thanks to patented, independent lamp cleaning
QUICK-RELEASE CLOSURE: For easy opening of the lamp housing. To protect against eye damage, a safety switch automatically deactivates the UVC lamp
WELL PROTECTED: 100% protection against eye damage
AUTOMATIC: Due to the water flow, the cleaning rotor is continuously and automatically guided around the quartz glass tube and thus prevents dirt deposits
INCLUDED: High-quality UVC lights
QUALITY: High-quality design with impact-resistant plastic
EYE-CATCHING: Visual function check of the UVC light
GUARANTEED: Includes OASE clear water guarantee (in conjunction with the OASE flow-through filters BioSmart, BioTec and ProfiClear)
INTEGRATED: Magnets for protecting the filter equipment from lime deposits
SYNCHRONOUS: Individual regulation of the water flow rate allows you to optimally tune the Bitron C to the connected filter pump

Technical Data

Dimensions (L x W x H)	mm	730 x 215 x 200
Rated voltage		220 - 240 V / 50/60 Hz
Power consumption	W	110
Power cable length	m	5.00
Net weight	kg	6.50
Limited Warranty	Years	2
UVC power	W	110
Temperature display		No
UVC Bypass		manually
UVC operating hours meter		No
Function check		Visual
Number of inlets	Units	1
Inlet connections	mm	19 / 25 / 32 / 38 / 50
Inlet connections		¾", 1", 1 ¼", 1 ½", 2"
Number of outlets	Units	2
Connections, outlet	mm	25 / 32 / 38
Outlet connections		1", 1 ¼", 1 ½"
Min. flow rate	l/h	12000
Max. flow rate	l/h	40000
Max. operating pressure	bar	1
Suitable for ponds up to max.	m ³	110.0
Suitable for ponds with fish stock	m ³	55.0
Suitable for ponds with koi	m ³	27.5
Connection to		BioTec 30, BioTec ScreenMatic² 90 - 140000, ProfiClear

OASE BITRON C 110 W
