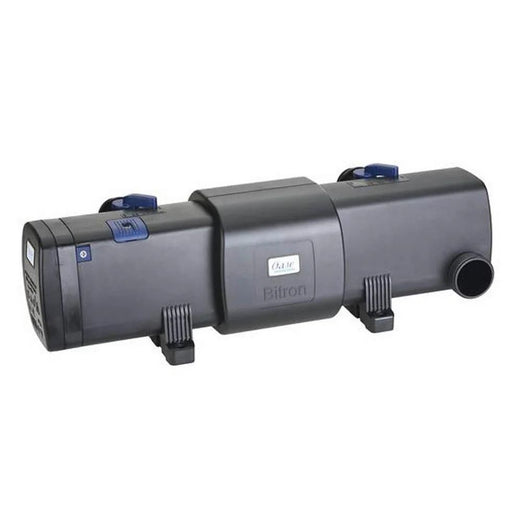

The UVC clarifier OASE Bitron C 36 W removes floating algae and reduces harmful bacteria for healthy and clear water. An automatic cleaning system ensures fully effective UVC radiation at all times. A control window provides additional functional reliability. Eye protection guaranteed by 100%, VDE-tested safety. With a power consumption of 36 watts, 4,500 l / h can flow past the UVC tube without a bypass. The flow can be individually adjusted and regulated. The OASE Bitron C 36 W UVC clarifier is available complete with a universal stepped hose nozzle from ¾ "(19 mm) to 2" (51 mm). The cable is 5 m long. A flow nozzle optimizes the flow to the cleaning rotor. The nominal voltage is 230 V / 50 Hz. Optimal for connection to BioSmart 18000/36000 and BioTec Screenmatic 12-18.

Elimination of suspended algae (green water)
Reduction of harmful bacteria and pathogen levels
Clever UVC function monitor, display for bulb change and water temperature
Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
Individual water flow adjustment for optimal adaptation to the connected filter pump
Integrated magnets protect the UVC technology against limescale deposits
Visual function check of the UVC bulb
100% protection against eye damage
Quick release technology for easy bulb replacement
High-quality workmanship with impact resistant plastic housing
Incl. high quality UVC bulb
Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
Suitable for ponds up to 40.0 m³

Technical Data

Dimensions (L x W x H)	mm	600 x 180 x 198
Rated voltage		220 - 240 V / 50/60 Hz
Power consumption	W.	36
Power cable length	m	5.00
Net weight	kg	3.97
Limited warranty	Years	2
UVC power	W.	36
Temperature display		No
UVC bypass		manually
UVC operating hours meter		No
Function check		Visual
Number of inlets	Units	1
Inlet connections	mm	19/25/32/38/50
Inlet connections		¾ ", 1", 1 ¼ ", 1 ½", 2 "
Number of outlets	Units	2
Connections, outlet	mm	25/32/38
Outlet connections		1 ", 1 ¼", 1 ½ "
Min. Flow rate	l / h	8000
Max. Flow rate	l / h	30000
Max. Operating pressure	bar	0.5
Suitable for ponds up to max.	m³	40.0
Suitable for ponds with fish stock	m³	20.0
Suitable for ponds with koi	m³	10.0
Connection to		BioSmart 18000/36000, BioTec ScreenMatic² 40 - 60000

OASE BITRON C 36 W
