Concentrated UVC power! The revolutionary UVC clarifier Bitron Eco with 120 W power removes floating algae and harmful bacteria with maximum efficiency. Thanks to the automatic bypass regulation and the significantly enlarged housing, an optimal irradiation result is always guaranteed, even with changing flow rates of up to 50,000 l / h. The clever eco-control regulates the irradiation time depending on the seasonal needs. This enables energy savings of up to 50% to be achieved! You can also save on the light sources, because the newly developed 60W UVC lamp has a service life of 12,000 hours that is 50% longer. In addition, changing the lamp is now child's play and without dismantling the quartz glass. The proven automatic cleaning system is also included, an LED UVC control as well as a display for lamp change and water temperature. Thanks to the protection class IP68, the Bitron Eco can be set up directly on or even in the pond. The cable length is 5 m, the nominal voltage 220 - 240/50 Hz. The Bitron Eco enables a 1 1/2 "and 2" connection. Optimal for connection to ProfiClear, BioTec 30, BioTec ScreenMatic 36. You receive a guarantee of 2 years + 1 year requirement guarantee.

High intensity treatment of suspended algae, turbidity and harmful bacteria in the pond water
Innovative UVC bulb technology with 50% longer service life (12,000 h) - developed in cooperation with Philips
High volume UVC housing with a new design and organic shape for a particularly long water Retention time
Eco control system enables maximum energy efficiency with savings potential of up to 50 %*
More protection for the climate. Eco mode saves up to 525 kg CO²/year*
Intelligent bypass regulation automatically adapts the flow rate to the pump capacity in the filter system
If desired, continuous irradiation or device switch off are possible at the touch of a button
Clever UVC function monitor, display for bulb change and water temperature
Fully effective UVC radiation at all times, thanks to patented cleaning automation for the UV bulb
Simple connection to other 2" filter systems
100% protection against eye damage
Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear

Technical Data

Dimensions (L x W x H)	mm	725 x 227 x 248
Rated voltage		220 - 240 V / 50/60 Hz
Power consumption	W	120
Power cable length	m	5.00
Net weight	kg	7.75
Limited Warranty	Years	2 + 1
UVC power	W	120
Temperature display		Digital
UVC Bypass		automatic
UVC operating hours meter		12000 h
Function check		LED
Number of inlets	Units	1
Inlet connections	mm	38 / 50
Inlet connections		1 ½", 2"
Number of outlets	Units	1
Connections, outlet	mm	38 / 50
Outlet connections		1 ½", 2"
Min. flow rate	l/h	10000
Max. flow rate	l/h	50000
Max. operating pressure	bar	1
Suitable for ponds up to max.	m³	120.0
Suitable for ponds with fish stock	m³	60.0
Suitable for ponds with koi	m³	30.0
Connection to		BioTec 30, BioTec ScreenMatic² 90 - 140000, ProfiClear

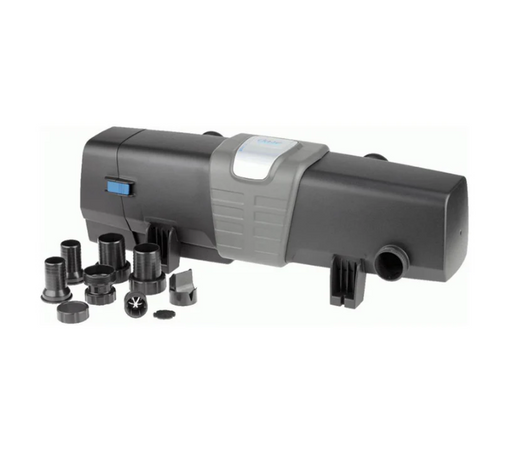

OASE BITRON ECO 120
