Mature, professional technology with more than three years of development time
Modern modular filter system for professional water quality where space is at a minimum.

TECHNICAL DATA

Dimensions (L x W x H)	mm	830 x 600 x 820
Rated voltage		230 V / 50 Hz
Power consumption	W	5
Power consumption, cleaning	W	1050
Cable length	m	2.00 + 1.00
Net weight	kg	74.50
Guarantee (+ request guarantee) *	Years	2 + 1
Control unit		Microcontroller
Temperature display		Digital
Coarse debris extraction	µm	60
Number of nozzles/rinse quantity		4 x 2.5 l/min
Scavenging pump		6 bar
Automatic rinsing system		manually, Sensor, Time interval
Number of sieve elements	Units	8
Filter intake surface	cm²	4200
Material		GRP Duroplast/stainless steel
Inlet connections	mm	50
Inlet connections		2 x 2″ + Bitron
Number of outlets	Units	2
Outlet connections		DN 150
Sludge discharge connections		DN 75, DN 110
Flush trough connection		DN 110
Connection to		Bitron C 72 – 110 W, Bitron Eco 120 – 240 W
Min. flow rate	l/h	10000
Max. flow rate	l/h	25000
Installation height above water level	cm	40.0
Possible water level difference		5 cm
Type of use		Pump fed system
Other		Pollutant discharge incl. slide valve

SPARE PARTS

POS.	PRODUCT	SKU	QUANTITY
1	Spare part lid cpl. drum filter	18795	1
2	Clip drum filter	18842	2
3	Container PCP DF-L pump-fed 2017	47872	1
4	Upgrade-Controller ProfiClear Prem. EGC	47012	1
6	Cable protection Quintet / drum filter	11979	1
8	Fuse T8A 250 V	18692	1
9	ASM waste channel PCP DF-L 2017	48173	1
10	Lock nut V2A DIN 985 M6	6128	1
11	Spare ASM drum motor	71771	1
12	Cylinder screw V2A DIN 912 6 x 12	5948	1
13	Cover cleaning tube PCP DF-L 2017	47882	1
14	Spare nozzle ProfiClear Premium	18797	1
15	ASM cleaning tube PCP DF-L 2017	47885	1
15	Spare cleaning tube DF-L 2017 with cover	85634	1
16	Spare hose bracket ProfiClear Premium	18790	1
19	ASM sieve frame 150 µm	19004	1
19	ASM sieve frame 60 µm	22005	1
20	Locking pin V2A DIN 11023 – 6 mm	19515	1
21	Drum shaft	16288	1
22	Spare drum ProfiClear Premium	18796	1
23	Spare drum bearing drum filter	18791	1
24	Spare connector rinse pump ProfiClear	18793	1
25	Rinse pump 6 bar – 2.7 m cable	48178	1
26	Fastening kit rinse pump	17043	1
27	Oval head screw V2A DIN 7985 M6 x 25	17918	1
28	Washer VA DIN 9021 6.4	6143	1
29	Fiberplate DIN 7603 6 x 12 x 1 mm	20609	1
30	Cap nut V2A DIN 1587 M6	6117	1
31	Pre-filter rinse pump	18943	1
32	Rubber ring pump	16750	1
33	Oval head screw CZ-V2A DIN 7981 6.3 x 32	27572	1
34	Gasket 150 screwed	26957	2
35	Outlet 150/1 ProfiClear M 2 – M 5	26958	1
36	Spare drain DN75 Premium	18446	1
37	Spare srews set drain DN75 Premium	18448	1
38	Spare grommet drum filter pump-fed	18798	1
39	ASM connection set DN 110	19005	1
40	Replacement Plug	35570	1
41	Spare drum gasket	23192	1
42	Cylinder screw V2A DIN 912 M4 x 20	20320	1
43	ASM signal box pumped	40129	1
44	Spare seperating wall PCP pumped 2017	49036	1
45	Safety nut V2A DIN 985 M4	11113	1
46	O-Ring EPDM 6 x 1.5 SH70 A	19023	1
47	Cable holder drum filter	19402	1
48	Spare plain roller drum filter	18794	1
52	Spare cover gasket seal drum filter	21981	1
54	Spare ProfiClear Premium repl. sieve 60µ	25376	1
55	Turmsilon GTI 300 GK tube 10 ml	27872	1
57	Retaining nut 2″	12097	1
59	Add. pack drum filter pump-fed II	22746	1
60	Spare set ASM gland seal	43867	1
64	Check valve 2″	48183	1
65	Mounting plate float sw. PCP-L pump 2017	54618	1
66	Adaptor signal box <2013-controller new	29763	1
67	Adaptor controller <2013-signal box new	29776	1
68	Spare cleaning tube bracket PCP 2017	49035	1
70	Cover cap nut M6	49847	1

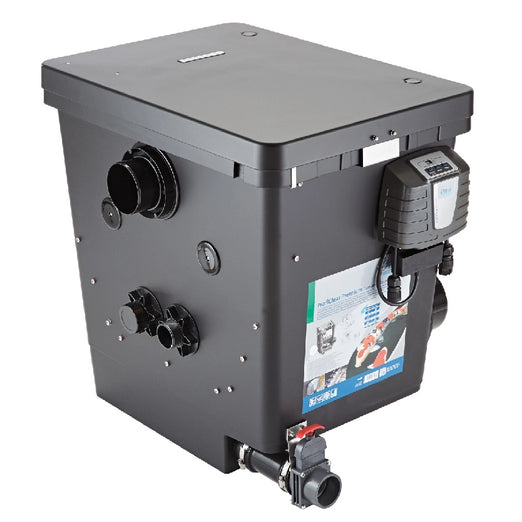

Proficlear Premium DF-L Pump-Fed EGC
