Mature, professional technology with more than three years of development time

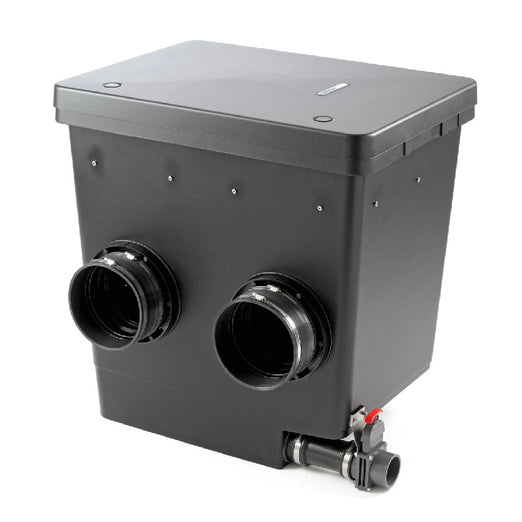

Modern modular filter system for professional water quality where space is at a minimum
Mature, professional technology with more than three years of development time
Space saving pump and UVC chamber for
Maximum flexibility in the connection through 2 x DN110 and 2″ transitions
To increase the filter capacity, it is possible to fill the individual baskets in the flow area with additional filter media – up to 8 litres fill volume
Integrated bottom drain with high quality, finely engineered slide valve
Flexible adaptation of the filter system to individual requirements (individual module)
Innovative and reliable product »Made in Germany

TECHNICAL DATA

Dimensions (L x W x H)	mm	830 x 600 x 820
Net weight	kg	37.00
Guarantee (+ request guarantee) *	Years	2 + 1
Material		GRP Duroplast/stainless steel
Number of inlets	Units	2
Inlet connections	mm	180
Inlet connections		2 x 185 mm
Number of outlets	Units	4
Connections, outlet	mm	50
Outlet connections		2 x 2″ / 2 x DN 110
Sludge discharge connections		DN 75
Connection to		AquaMax Eco Gravity, Bitron Gravity
Min. flow rate	l/h	10000
Max. flow rate	l/h	33000
Installation height above water level	cm	11.5
Type of use		Gravity fed system, Pump fed system
Other		Pollutant discharge incl. slide valve

SPARE PARTS

POS.	PRODUCT	SKU	QUANTITY
1	ASM lid container M / L	72780	1
2	Spare base screen incl. foot ProfiClear	35407	1
3	Container UVC phosphate	17040	1
4	Clip drum filter	18842	2
5	ASM connection set DN 110	19005	1
6	Blanking cap DN 110	16387	1
7	Spare grommet ProfiClear individual	18833	1
8	Spare drain DN75 Premium	18446	1
9	Spare srews set drain DN75 Premium	18448	1
10	ASM rubber bushing D178 mm	17251	2
11	Outlet 150/2 ProfiClear M 2 – M 5	26987	2
12	Gasket 150 screwed	26957	2
13	Oval head screw CZ-V2A DIN 7981 6.3 x 32	27572	1
14	Spare mesh ProfiClear individual module	18800	1
15	Oval head screw V2A DIN 7985 M6 x 12	20292	4
16	Fiberplate DIN 7603 6 x 12 x 1 mm	20609	1
17	Cap nut V2A DIN 1587 M6	6117	1
18	Basket holding plate ProfiClear	17534	2
19	Spare cylinder fixing ProfiClear Premium	18812	1
