Mature, professional technology with more than three years of development time
Modern modular filter system for professional water quality where space is at a minimum
Mature, professional technology with more than three years of development time

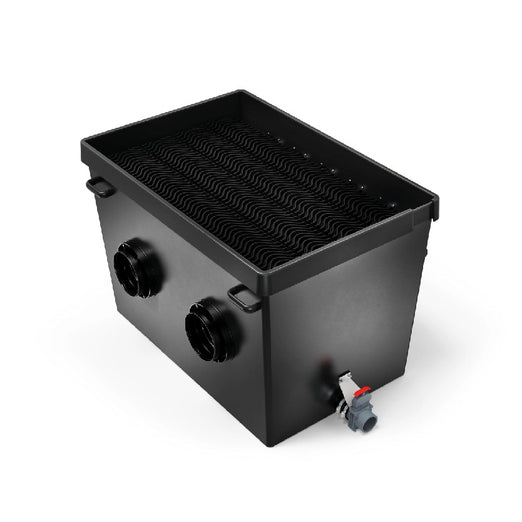

A fixed bed filter (OASE ClearWave) in the pump-fed discharge module provides the final touch to achieve optimum water clarity
Highest flexibility due to 5 x DN110 outlets
Integrated bottom drain with high quality, finely engineered slide valve
Flexible adaptation of the filter system to individual requirements (individual module)
Innovative and reliable product »Made in Germany
Available from March 2020

TECHNICAL DATA

Dimensions (L x W x H)	mm	1330 x 875 x 820
Net weight	kg	101.60
Guarantee (+ request guarantee) *	Years	2 + 1
Temperature display		No
Material		GRP Duroplast/stainless steel
Number of inlets	Units	2
Inlet connections	mm	180
Inlet connections		180 mm
Number of outlets	Units	5
Outlet connections		DN 110
Sludge discharge connections		DN 75
Connection to		AquaOxy 2000, ProfiClear Premium DF-XL pump-fed EGC, ProfiClear Premium XL Moving Bed
Min. flow rate	l/h	25000
Max. flow rate	l/h	50000
Installation height above water level	cm	32.0
Type of use		Pump fed system
Other		Aeration pre-installed

SPARE PARTS

POS.	PRODUCT	SKU	QUANTITY
1	ASM cover XL Moving Bed	71759	1
2	Holder Clear Wave DM XL pumped	76369	1
3	Oval head screw Torx V2A ISO14583 M6x25	70425	1
4	Fiberplate DIN 7603 6 x 12 x 1 mm	20609	1
5	Strap grip PA black	35676	1
6	Lock nut V2A DIN 985 M6	6128	1
7	Cap nut V2A DIN 1587 M6	6117	1
8	Conn. air stone discharge module XL pump	77537	1
9	Air stone ProfiClear 200 x 50 mm	76060	1
10	Oval head screw Torx V2A ISO14583 M6x16	70424	1
11	Airstone clamp bio filter	17216	1
12	Clear wave drainage module XL pumped	76368	1
13	Add. pack air connector ProfiCl. Compact	42890	1
17	ASM rubber bushing ID185 to 185 mm	54964	1
18	Container XL drain chamber pump-fed	73436	1
19	Spare connection set DN110 short	77507	1
20	Blanking cap DN 110	16387	1
21	Spare drain DN75 XL	70636	1
22	Spare srews set drain DN75 Premium	18448	1
23	Oval head screw Torx V2A ISO14585 6.3×32	70428	1
24	Gasket mesh tube 2016	43756	1
25	Outlet 150/2 ProfiClear M 2 – M 5	26987	2
